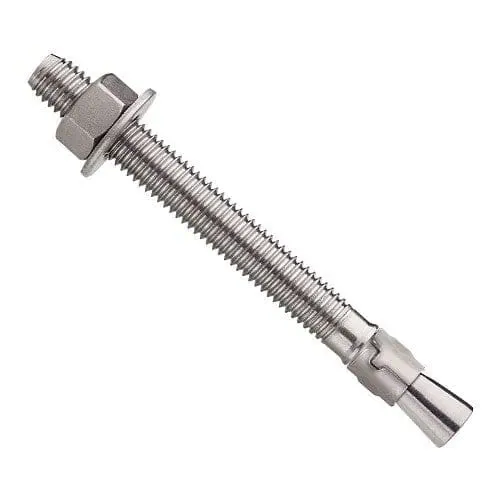

The Power-Stud anchor, is a fully threaded, torque-controlled, wedge expansion anchor. It is available in a threaded version suitable for applications in solid concrete and grout-filled concrete masonry. The threaded version is produced in 304 stainless steel and 316 stainless steel.
Features
- Fully threaded, medium duty all-purpose anchor
- Length ID stamped on each threaded anchor
- Anchors can be installed through the fixture for hole spotting not required
- Chamfered impact section prevents damage to threads
- Clip design prevents spinning during installation
- Nominal drill bit diameter same as anchor diameter
Applications
- Lighting Standards and Base Plates
- Sills and Support Ledgers
- Retrofit Projects and Machinery Anchorage
- Food and Beverage Facilities
- Water Treatment Plants and Marine Applications
Specifications
- Type: Wedge Expansion Anchor
- Finish: Plain
- Anchor Material: 316 Stainless Steel
- Anchor Diameter: 5/8"
- Anchor Length: 8-1/2"
- Thread Length: 7"
- Quantity: 25
- Head Styles: Threaded Stud (UNC)
- Suitable Base Materials: Normal-weight concrete, Lightweight concrete, Grouted concrete masonry (CMU)
- Approvals & Listings: Tested in accordance with ASTM E488, Federal GSA Specification Meets the descriptive and proof load requirements of CID A-A-1923A, Type 4
